New laser diode for 532NM green and 473NM blue dpss 808

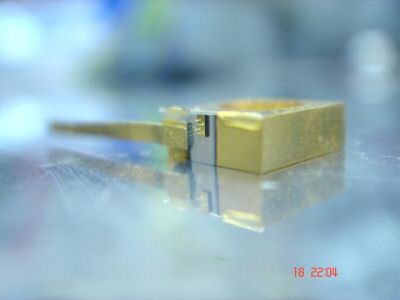

STATE OF THE ART, NEW, 1 WATT, 808nm, CONTINUOUS WAVE
WE ALSO STOCK A HUGE RANGE OF STATE OF THE ART NEW 808nm LASER DIODES.
AND CAN ORDER DIFFERENT TYPES AND WAVELENGTHS BY REQUEST.
C -MOUNT LASER DIODE EXAMPLE APPLICATIONS:
HIGH POWER GREEN OR BLUE DPSS LASERS.
CUTTING, ETCHING, LASER SHOWS, LAB RESEARCH, ETC.
C- MOUNTS ARE WELL KNOWN FOR THEIR RELIABILITY, EASE OF MOUNTING, COOLING, CONSTANT STABILITY AND LONG LIFETIME.
ONE OF THE BEST ADVANTAGES OF THIS LASER DIODE IS BEING ABLE TO ADJUST IT ONCE IT HAS BEEN MOUNTED, WITH ADJUSTING BEING CRITICAL IN ALL DPSS 532nm and 473nn GREEN AND BLUE LASERS.
THE FOLLOWING ADJUSTMENTS CAN BE MADE FROM ITS CENTER COUNTER-BORED MOUNTING BOLT HOLE.
· IT’S ADJUSTABLE AROUND IT'S FIXTURE AXIS 360 DEGREES ROTATIONAL.
· ADJUSTABLE IN ALL DIRECTIONS ALONG IT'S FLAT MOUNTING PLANE.
· ADJUSTABLE IN A TILTING MOTION IN ANY DIRECTION BY ADDING THIN FOIL AS SHIMS UNDER THE MOUNTING FACE.
· ADJUSTABLE BY HEIGHT BY ADDING OR REMOVING THIN FOILTYPE OR COPPER SHIMS UNDER THE TOTAL AREA OF THE MOUNTING FACE.
· 1000milli Watt OUTPUT, C/WAVE.
· PEAK WAVELENGTH(NM) : 808+/-3nm
· THRESHOLD CURRENT (mA) :<300.
· OPERATING CURRENT (mA) :<1400.
· OPERATION VOLTAGE (V) :< 2.2VDC.
· WAVELENGTH TEMPERATURE COEFFICIENT (nm/DEG Cel) : 0.3.
· BEAM DIVERGENCE (DEG) : 12/40
· EMITTING AREA (MICRONS METRIC) : 100X1.
· SERIES RESISTANCE (OHMS) : < O.5.
DANGER THIS A CLASS 4, 1 WATT 808nm C/WAVE LASER DIODE, VISIBLE AND INVISIBLE LASER RADIATION EMITTED FROM DEVICE
STANDARD HIGH POWER LASER WARNINGS
1) You Are over 18 and know the potential hazards inherent in high power laser equipment.
5) You WILL use this device in a safe and sane manner for a legal purpose.
FOR MORE INFORMATION CONTACT AERODYNAMICS2006, TRADING FOR AEROSPACE DYNAMICS, MELBOURNE, AUSTRALIA. CERTIFIED, REGISTERED, AUSTRALIAN BUSINESS.
PACKAGED TO AEROSPACE/MILITARY SPECIFICATIONS.
