1970PF @ 500 volts dipped silver mica capacitors qty=7


* ...Always a Money Back Guarantee

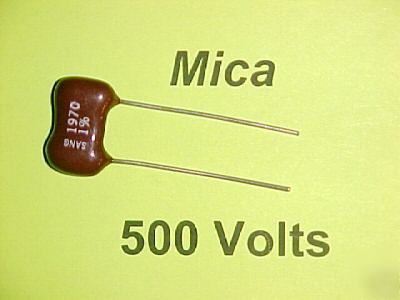

On sale are package of seven (7) new stock 1970 pf / mmfd at 500 Volts dipped Silver Mica Capacitors. Copper-clad steel leads finished with a solder coating for excellent solderability. Epoxy dipped for superior heat, moisture, vibration and solvent resistance. Capacitance tolerance is +/- 1%. These 500 Volt Silver Mica Capacitors made by "brand name" SANG.
CAPACITOR Specifications and Features
* Copper-clad steel leads are finished with a solder coating for excellent solderability. Long 35mm straight radial leads for easy "under-chassis" installation in tube electronics.
* Excellent capacitor replacement where tolerance & capacitance stability and high reliability are required, such as in oscillator circuits; logic and transmission circuits, DC voltage blocking, filters, delay lines and pulse forming networks.
* Rated Working Voltage: 500 Volts DC. Test voltage 1000 volts DC.
* Epoxy dipped for superior heat, moisture, humidity, shock, vibration and solvent resistance.
* Stability over full life of equipment
* Low capacitance change with temperature.
* Wide operating temperature range:-55 to +150 C.
* Capacitance tolerance +/- 1%.
* Available in "hard-to find" pre WWII MMFD sizes for tube based electronics.
* Capacitance Range: All sizes 1 pF thru 5000 pF, namely: 5pf, 10pf, 15pf, 20pf, 22pf, 25pf, 27pf, 30pf, 33pf, 40pf, 47pF, 50pf, 68pf, 70pf, 82pf, 100pf, 110pf, 120pf, 150pf, 180pf, 200pf, 220pf, 250pf, 270pf, 300pf, 330pf, 360pf, 390pf, 400pf, 470pf, 500pf, 600pf, 680pf, 700pf, 750pf, 800pf, 820pf, 900pf, 910pf, 1000pf, 1200pf, 1350pf, 1500pf, 1800pf, 2000pf, 2200pf, 2400pf, 2500pf, 3000pf, 3600pf, 3900pf, 4000pf, 4700pf and 5000pf. For conversion purposes please note that 1000 pF = 0.001 uF. Also, PF and MMFD are the same.
