Stepper x-y drive system - cnc, engraving, etc

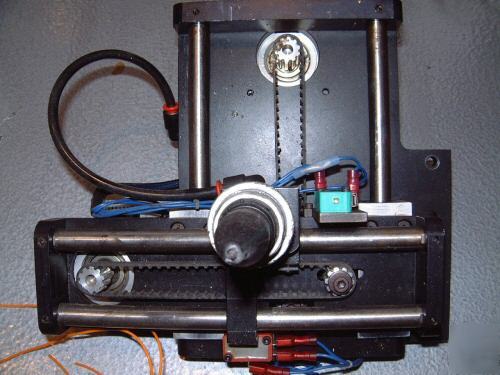

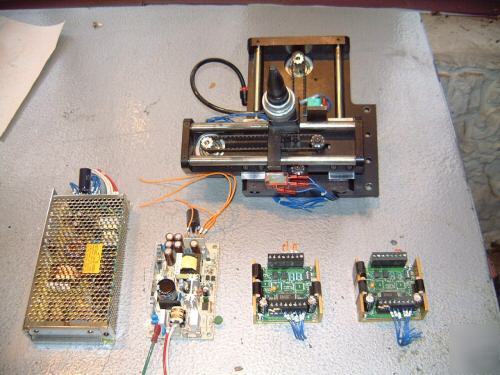

XY linear guide system with approximately 3" * 4" travel, featuring dual guide rails, precision toothed belt drives and home position switches.

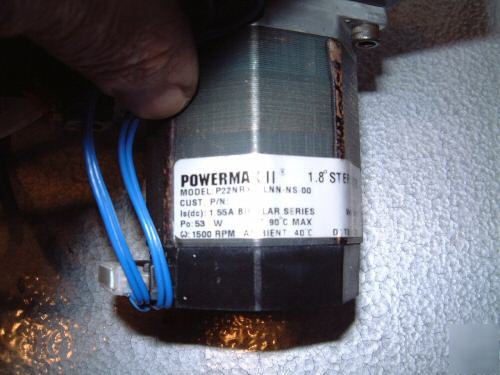

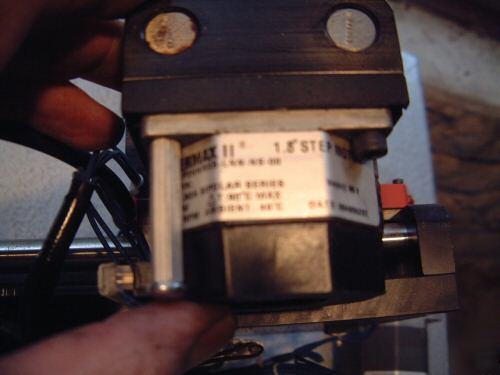

2 1.8 degree Pacific Scientific Powermax II stepper motors. One is #P22NRXC-Lnn-NS-00 and is 53 watt bipolar @1.55 amps, the second is a #P2HNRXB-LNN-NS-00 and is 34 watts bipolar @1.3amps

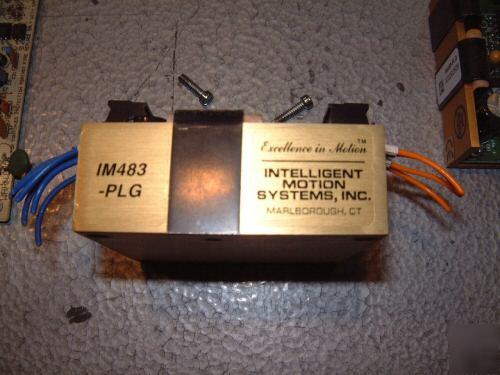

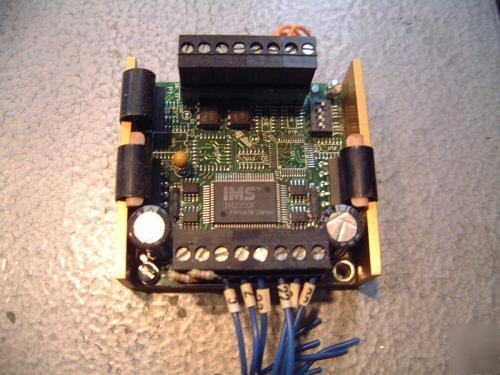

2 microstepping drives by Intelligent Motion Systems #IM483-PLG
1 5 volt dc logic supply for the drives
1 24 vdc switching power supply with 4.5amps current
You even get a solenoid valve and an impact marking head (whether you use it or not is your choice)
Everything is used, but in good working condition. Just add your own motion controller (you could use your pc's parallel port) add some wiring and your off and running.
The applications above are just suggestions and are in no way a gaurantee that they will work for that specific application. This system also requires some knowledge of basic wiring and electronics and does not include manual, but these may be obtained online for free as these are newer components.
