Yokogawa 2792  standard resistor

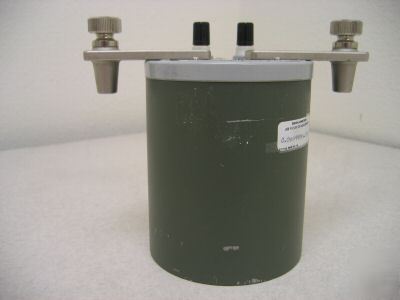

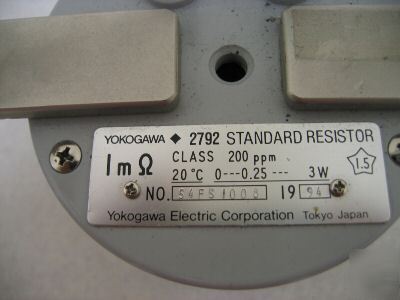

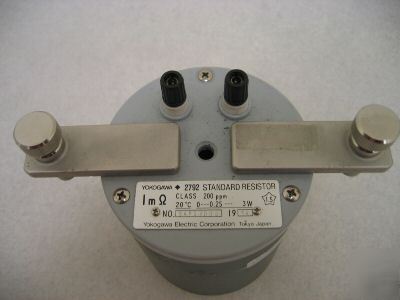

Yokogawa 2792 Standard Resistor
Model 2792 resistors are Low to High-value resistance standards which can be used for accurate DC Measurements in combination with a potentiometer or bridge. The different models available range from 0.001Ω to 1mΩ. The resistor elements of the 0.001Ω to the 10kΩ models (4-terminal construction) are made with selected manganin wire, and the models which range from 100kΩ to 1MΩ (three terminal construction) are made with nickel and chromium wire. All resistors are fully processed to assure the permanence of resistance.
* Low to high-value resistance standards - 0.001Ω to 1MΩ in 10 steps
* Calibrated limit of error - ±10 ppm to ±100 ppm
* Suitable for Precision DC measurements using a potentiometer or bridge
* Models 279201 - 279208 Possess 4-terminals
* Models 279209 and 279210 possess 3-terminals
* This used item is in excellent working condition.
* No accessories are included.
* 14 Day Guarantee Against DOA
