Cimr-J7AM42P20 3.0HP 460V yaskawa gpd 305/J7 vsd
CIMR-J7AM42P20 3.0HP 460V Yaskawa GPD 305/J7 VSD

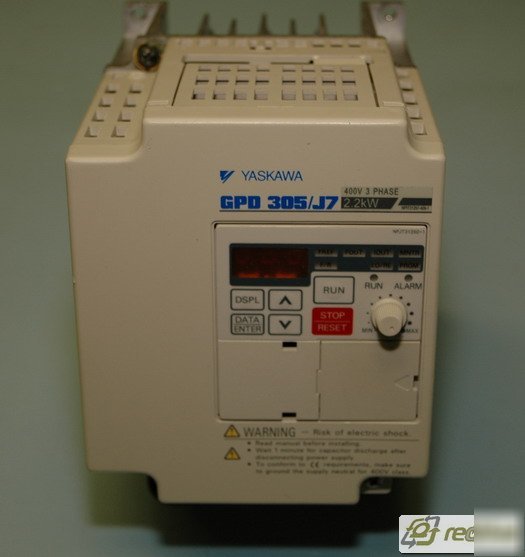

Yaskawa / Magnetek CIMR-J7AM42P20 J7 GPD 305/J7 HV AC Drive 3HP 460V VFD
Condition: Used. Like new condition. Tested.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)
General purpose Variable Frequency HV AC Drive / Spindle.
Click to see more items from Redrive Inc.
The J7 drive is a general purpose drive for use with squirrel cage induction motors. This PWM design provides low motor noise and high starting torque. The current overload rating is 150% for 60 seconds. V/f control makes this drive suitable for most general applications.
The J7 is feature-packed, low cost and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer. Digital programming covers 79 parameters suitable for many applications. The four standard multifunction inputs can be programmed to allow for 9 preset speeds. The J7 also has an analog input, a multifunction output, and an analog output as standard.
DriveWizard is one of the outstanding options for the drive. This software enables upload, download, and monitoring of drive parameters.
An optional RS-485 Modbus RTU serial communication port is available with up to 32 nodes on a single network.
This J7 was previously named GPD 305/J7
J7 is an ideal choice whenever excellent performance, low cost, and small size are required.
J7 Drive Documentation and Manual available
CIMR-J7AM42P20 or CIMR-J7U42P20 or CIMR-J7AM42P2 or CIMR J7AM 42P2
380 - 460VAC (3-Phase) 8.1Amp 50-60Hz
0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
4 multifunction digital inputs
24-48 hours turnaround time for 95% of repairs
30 days limited warranty and support
Exchange option available for repair price
Optional Extended Warranty available
All units will be tested with suitable equipment and repaired by professionals
CLICK here to see Full line of our products.
Phone: (***)-478-1328 ****@redrive.net Fax: (***)-478-1328
We offer repair service for many drives, power supplies, motors and servopacks
24-48 hours turnaround time for 95% of repairs.
30 days limited warranty and support
Exchange (trade-in) option available for repair price after refund for some items. (If we have same item for sale)
Optional Extended Warranty (6 or 12 months) available for additional cost
All items will be tested with suitable equipment.
Contact us for price quote and more details. Repair prices will pleasantly surprise you!
Manufacturers warranty applies on all new products.
If you are dissatisfied with a product from REDRIVE Inc. you may return the product within 15 calendar days of the invoice date. A 20% restock administration fee will apply to all non-warranty returns. No non-warranty returns will be accepted 15 days after the invoice date. (If you need to make a non-warranty return claim please contact us at ****@redrive.net for a return authorization number (RMA#) prior to any return). Refunds will be issued only upon receipt and testing. Product must be returned in purchased condition and accompanied by a REDRIVE Inc. return authorization number (RMA#).
