Stelron trans-part linear rotary pick & place j-1-a-90-

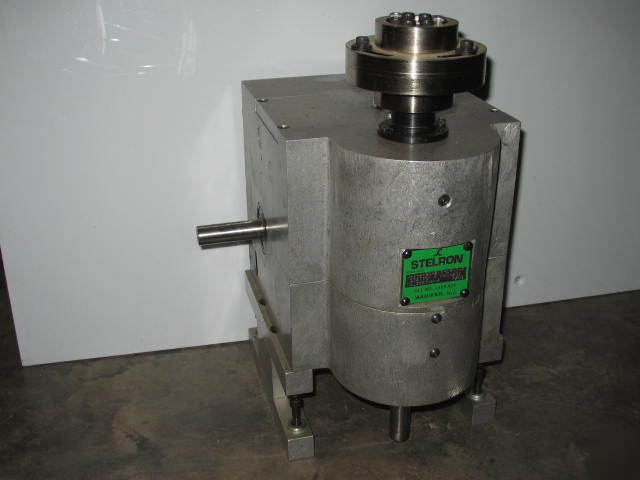

The Stelron TRANS-PART has been developed to provide smooth, positive, cam controlled Linear-Rotary motions to an external output shaft. A compact housing encloses the internal parts and provides for mounting on any of five different surfaces to suit a wide variety of installations.

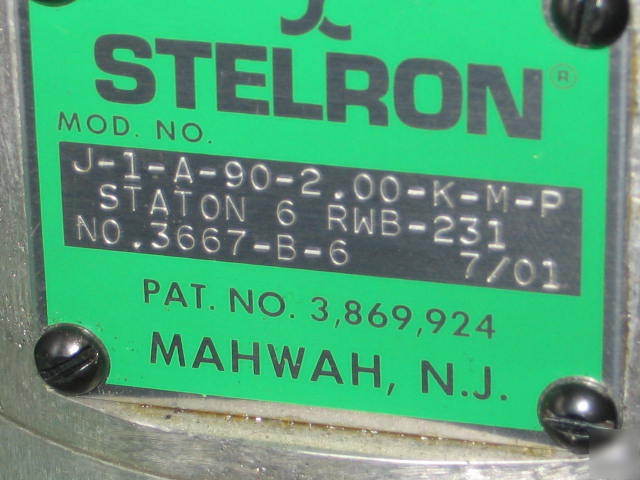

* Model #: J-1-A-90-2.00-K-M-P
* Linear accuracy/repeatability: ±.005/±.003
* Rotary( @ 6" R.) accuracy/repeatability: ±.008/±.0030
To view a video of it working, click here: http:// /RAD%20Indexer%202.wvx
To view a pdf file, click here: Website(This file is a PDF file. You will need a PDF Reader to view it. You can download one by clicking on one of the following: Adobe Acrobat Reader, Foxit PDF Reader.)
(Please click on an image to enlarge it.)
