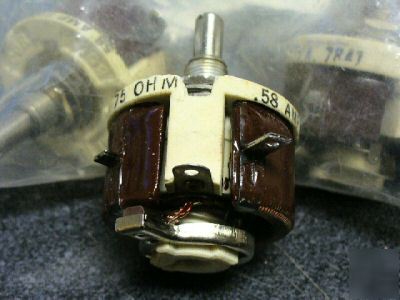

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 75.000 OHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STOP TORQUE - 240.00 INCH-OUNCES
MAXIMUM STARTING TORQUE - 40.00 INCH-OUNCES
POWER DISSIPATION RATING PER SECTION IN WATTS - 25.0 HEAT SINK SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 25.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 340.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 1.680 INCHES MAXIMUM
BODY LENGTH - 1.410 INCHES MAXIMUM
MOUNTING BUSHING LENGTH - 0.375 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.248 INCHES MINIMUM AND 0.251 INCHES MAXIMUM
SHAFT LENGTH - 0.828 INCHES MINIMUM AND 0.922 INCHES MAXIMUM
CONTACT ARM ELECTRICAL OFF POSITION - FULLY CW
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 275.0 MINIMUM AND 305.0 MAXIMUM
ACTUATOR TRAVEL CONTROL FEATURE - CONTINUOUS MOTION
NONTURN DEVICE LOCATION - AT 12 OCLOCK
NONTURN DEVICE RADIUS - 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNEF
SCREW THREAD DIAMETER - 0.375 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LENGTH - 0.580 INCHES MAXIMUM
TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
RELIABILITY INDICATOR - NOT ESTABLISHED
TEST DATA DOCUMENT - 81349-MILR22-3 SPECIFICATION
III OVERALL LENGTH - 2.332 INCHES MAXIMUM
III OVERALL DIAMETER - 2.260 INCHES MAXIMUM
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR22-3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M22-03-00122SD
