Magnetek gpd 505 vs drive 150 hp GPD505V-B180 GPD505

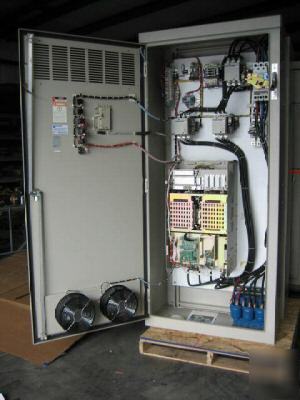

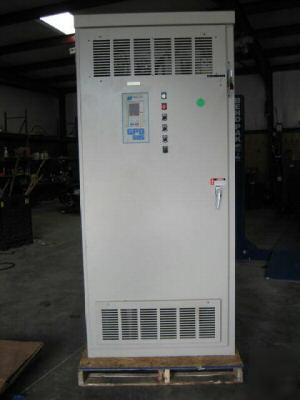

Complete in GPD 505 ByPass Cabinet
Each 150HP MagneTek 3-Phase AC Drive is in Excellent Condition both externally and internally. These drives came out of a very new/up to date IBM facility and were frequently maintained and serviced until factory shut-down about 3 months ago. All that you need is a supply voltage and then a wire going out to a 150 HP and under 3 Phase motor. Dimensions are 84" Tall x 38" Wide x 21" Deep.
GPD 505 Factory Technical Manual
Power Conditioner / Line Reactor
Volts: 460 Amps: 198 Phase: 3 Hz: 50 / 60
Volts: 0 - 460 Amps: 180 Phase: 3 Hz: 0 - 60
Model: GPD505V-B180 Spec: 40751A
AC 3Phase: 380 - 460V 50Hz 198A
AC 3Phase: 380 - 460V 60Hz 198A
AC 3Phase: 0 - 460V 0 - 400Hz 180A
If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can.
Our business has been in operation for over 20 years.
