Anderson instrument sanitary 100 ohm mini rtd 36 inch
ANDERSON INSTRUMENT SANITARY 100 OHM MINI RTD 36 INCH

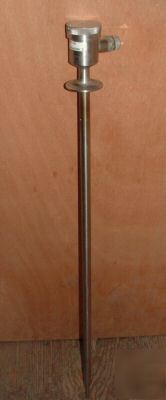

ALL ITEMS INCLUDED ARE PICTURED
Specifications: USED RTD PICTURE IS REPRESENTATIVE OF ITEM LENGTHS VARY SEE OTHER LISTINGS
Anderson SA-Series RTD sensors are 100 ohm, 3-wire, DIN standard elements designed for direct immersion in sanitary applications or in any of a wide variety of thermowells. Sensors are available in single or dual element confi gurations. Single element styles may be specifi ed with factory sealed, shielded cables up to 200 feet in length, or in our unique modular design or with our new water-tight quick disconnect. The modular elements can be mated with either the "mini" head for standalone RTD applications or our transmitter head for analog or "SMART" transmitter applications. All dual element sensors are supplied in the modular confi guration, now available with dual output wiring heads as well. All sensors feature completely sealed internals for maximum moisture and vibration resistance. They provide the fastest possible response characteristics due to our unique method of internal element attachment which eliminates all air and nonmetallic materials between the element and the process material being monitored. These sensors are constructed entirely of 316L grade stainless steel.
General: 100 ohm, 3-wire* sensors which conform to DIN standards. Single element standard; dual element optional
Coefficient: .00385 ohms/ohm/Deg. C
Accuracy: .1% at 0°C (Band 1) Standard
Probe Diameters: 1/4" standard for sanitary clamp styles (1"-4") single or dual element.
Anderson SA-Series RTD sensors are 100 ohm, 3-wire, DIN standard elements designed for direct immersion in sanitary applications or in any of a wide variety of thermowells. Sensors are available in single or dual element confi gurations. Single element styles may be specifi ed with factory sealed, shielded cables up to 200 feet in length, or in our unique modular design or with our new water-tight quick disconnect. The modular elements can be mated with either the "mini" head for standalone RTD applications or our transmitter head for analog or "SMART" transmitter applications. All dual element sensors are supplied in the modular confi guration, now available with dual output wiring heads as well. All sensors feature completely sealed internals for maximum moisture and vibration resistance. They provide the fastest possible response characteristics due to our unique method of internal element attachment which eliminates all air and nonmetallic materials between the element and the process material being monitored. These sensors are constructed entirely of 316L grade stainless steel.
• All stainless steel with no exposed threads
• Field serviceable - replaceable elements
General: The wiring heads are designed to accept any type of RTD element, but offers the cleanest package when coupled with Anderson "no exposed thread" RTD's, which provide an O-ring seal against the housing.
Response: 2.5 to 3 seconds for 63% step change
Low End: -50°F (-45°C) minimum
High End: 350°F (176°C) maximum
Material: 316 "L" Stainless Steel wettable parts
Surface Finish: 25 micro-inch R
a 32 micro-inch Ra (thermowell fi ttings)
Fitting Styles: All standard sanitary clamp styles, including fractional clamps and mini thermowell styles;
Refer to ordering matrix for details
Penetrations: (2) at 1/2" - 14 NPT female; (1) centered in bottom plate; (1) in side beneath cap rim.
Cable Connections: Standard NEMA 4X "Hubbell" style cable "grip", or Optional Quick Disconnect with Field Wireable Connector Ratings: NEMA 4X; IP66
RTD’s with quick disconnect are confi gured for 4-wire connection to minimize output errors from connection resistance.
