Ametek drexelbrook intellipoint rf point level switch

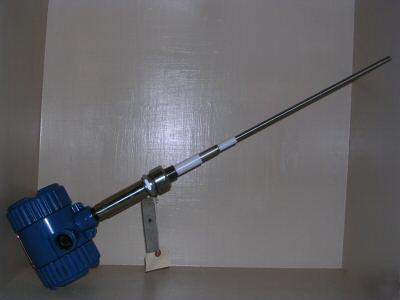

You are looking at one Ametek Drexelbrook Intellipoint RF Switch Part number: RHL3-0114-A1BE
IntelliPoint RF Point Level System with Universal Power Supply
·Measurement Type: Auto-Calibration High Sensitivity 0.5 pF Pre-Load (HL1)** (If you want a Standard Sensitivity Unit let me know and I will change the electronics to Standard Sensitivity. High Sensitivity is used with bulk density of less than 20 pounds per cubic foot.)
·Input: Universal Power Supply
·Housing: FM Approved, Dual Compartment NEMA 4X/IP66, 3/4" NPT conduit entries
·Remote/Integral & Cable: Integral
·Output: 2 SPDT Relays (5A @ 250 VAC/30 VDC Relay #2 field selectable for alarm or fault)
·Sensing Element: 700-202-2 SE, General Purpose, Low Pressure, 316SS and TFE wetted parts, Press/Temp: 3.4 bar @ 149C (50 PSI @ 300F)
·Mounting Type: 3/4" NPT 316SS
·Insertion Length: 457mm / 89mm 18" IL 3.5" CSL
More information can be found on the Ametek Drexelbrook web page. http://
A new unit from the factory would cost you $835.00.
