2 watt fp metal oxide resistor kit : 5 each of 84 sizes
* ...Always a Money Back Guarantee

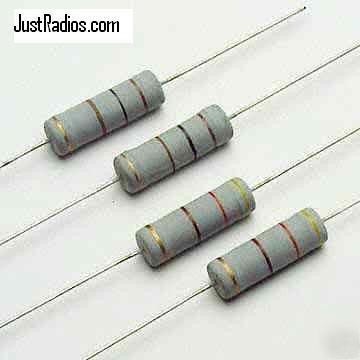

This Resistor Kit: 420 Flame-Proof 2W Metal Oxide/Carbon Film Resistors : 5% Tolerance : (5 each of all 84 sizes).
Never run short of the resistor size you need. This kit contains 420 top quality, new stock, flame-proof metal oxide/carbon film resistors. Sizes 1 ohm thru 270K are flame-proof metal oxide and 330k thru 10M ohm are flame-proof carbon film. This kit contains 5 each of all 84 often needed sizes sizes 1 ohm thru 10M ohm. These brand new factory fresh 2 watt flame-proof resistors feature: wattage of 2 Watts; tolerance: +/- 5%; operating temperature range: -55C to +155C; working voltage for flame proof metal oxide is 350V and for flame proof carbon film WV is 750V; flame proof coating; solder plated copper wire axial leads; ISO 9002 & UKAS certified and 100% RoHS compliant.
The resistors in this kit are excellent resistors for use in high power circuits such as tube radios, amps, TVs, etc.; have high stability and high reliability under diverse conditions and high temperatures....ideal for use in tube electronics. An economical, practical replacement for carbon composition resistors.
* Resistors in each kit have been specifically selected for tube radio, tube hi-fi, tube audio/guitar amplifier and tube based TV restorations.
* You get the most often needed resistor sizes in our Resistor Kits.
* All resistors are new "fresh" stock. We do not sell NOS (new old stock).
* All resistors are high voltage "normal" size body type. We do not stock the cheaper, low voltage "small" body type.
* For added safety, all resistors in our 1 Watt, 2 Watt and 5 Watt Kits are "flame proof" resistors.
* Free heat-shrink / spaghetti tubing with each resistor kit.
* MONEY BACK GUARANTEE on all Capacitor Kits.
* All resistors are ISO Certified and 100% RoHS compliant .
note: K = Kohm = 1000 ohms and M = Mohm = 1,000,000 Ohms
Resistors Included in Resistor Kit
: 420 Metal Oxide / Carbon Film
2 Watt (Flame Proof) Resistors
Never run out of the ohm size you need. These 2W resistors can be used to replace 1/2W, 1W & 2W resistors. This kit contains 420 high quality flame-proof metal oxide / carbon film resistors .... 5 each of all eighty-four (84) sizes 1 ohm thru 10M ohm..
Construction: Resistance element is formed by the oxidation reaction of a vapor or spray of tin chloride or tin-oxide film over a high thermal conductive rod. A flame proof coating is then applied. Total length of each 2 watt resistor is 80mm with body size 5mm by 15mm. *330K and over are flame-proof carbon film type.
* Wattage: 2 Watt (Can be used to replace 1/2W, 1W and 2W resistors).
* Operating Temperature Range: -55C to +155C
* Working Voltage: For Metal Oxide working voltage is 350V with maximum overload voltage of 800V. For carbon film the working voltage is 750V with overload voltage of 1500V.
* Excellent resistor for use in high power circuits.
* High stability, superior resistance to heat and high reliability in high voltage applications. Ideal for use in tube radio, amp, TV electronics.
* A popular and economical replacement for old carbon composition resistors.
* Solder plated copper wire axial leads.
* ISO 9002 & UKAS certified and 100% RoHS compliant.
420 Flame Proof 2 Watt Resistors
(5 each of 84 sizes: 1 ohm thru 10 Meg ohm)
* 5 each of all of the following eighty-five (84) ohm values:
180 ohm, 220 ohm, 270 ohm,
330 ohm, 390 ohm, 470 ohm,
560 ohm, 680 ohm, 820 ohm,
10K ohm, 12K ohm, 15K ohm,
18K ohm, 22K ohm, 27K ohm,
33K ohm, 39K ohm, 47K ohm,
56K ohm, 68K ohm, 82K ohm,
8.2M ohm & 10M ohm all at 2 Watt.
* 8 feet of spaghetti tubing
Do you need fewer or differtent sizes of resistors than are in the above resistor kit? JustRadios carries a full line of resistors for tube electronics, including; carbon composition, metal ozide, carbon film, metal film, metal glaze and power resistors. If you have a resistor requirement ...feel free to email us at ****@yahoo.com
