Datel pc-462 isa programmable power supply board used
Datel pc-462 precision programmable power supply board

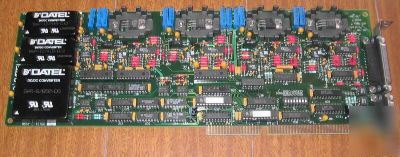

Status: Used. working pull. picture is stock
• 4 independently programmable, precision voltage/current outputs
• Remote sensing for all supplies
• All channels fully isolated from PC/ATbus
• Real time voltage and current monitoring
• 4 general purpose analog inputs
• 2 isolated relay driver outputs - MOSFET switches
Designed for low-cost, medium power source applications, the PC-462 is a high-precision, programmable power supply and sensing board for IBM-PC/AT, PS-30, EISAbus and compatible computers. Four output channels are individually programmable for ranges of 0 to +6.1425V and 0 to -6.1425V at 1A, as well as 0 to +20.475V and 0 to -20.475V at 250 milliamps. It is ideal for applications where highly accurate, very stable DC voltage and current sources are required, with low ripple and low noise characteristics. All input and output channels provide 250Vrms isolation from the PC/ATbus. Combined with comprehensive, graphic-intensive control software, this quad output supply card is easilyintegrated into most automated test and benchtop power supply applications.
For dynamic test sequences, the host PC can update all four output channels in real time. Voltage and current output levels are continuously monitored by an on-board, 12-bit A/D converter. A rear panel connector provides an additional 4 auxilliary input channels for general purpose use. The input range is ±5.12V but component pads on all of the channels allow for user-selectable ranges as well as current loop inputs and signal filtering. These channels are fully isolated from the PC/ATbus and are ideal for monitoring external voltage/current conditions in adaptive test applications.
