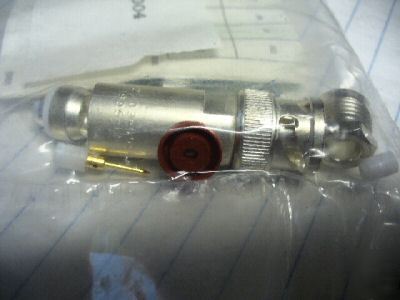

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 2.000 INCHES MAXIMUM
OVERALL DIAMETER - 0.593 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
CONNECTOR CABLE STRAIN RELIEF METHOD - CRIMP TYPE
CABLE ENTRANCE DIAMETER - 0.200 INCHES MINIMUM AND 0.325 INCHES MAXIMUM
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ABDB NONSTD SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - TRIAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 400.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING - 500.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - SALT WATER RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND MOISTURE RESISTANT AND COLD RESISTANT AND HEAT RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-49142 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-49142/3 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-49142/3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M49142/03-0004
