Greenlee 6001 super tugger unit

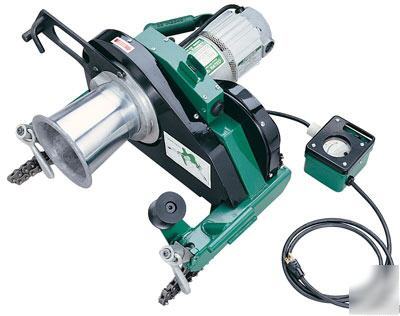

GREENLEE Super Tugger Cable Puller Power Unit - 6500 lbs.
Take Delivery as early as: 11/15/2007
•Pulling Force - Maximum: 6,500 lbs. (28.9 kN)
•Pulling Force - Continuous: 4,500 lbs. (20 kN)
•Dimensions: L 20-3/4" (527 mm) x W 22-1/2" (572 mm) x H 12" (305 mm)
•Pulling Speed No Load: 16.5 fpm (5 mpm)
•Pulling Speed At 2000 lbs. (8.8 kN): 11 fpm (3.4 mpm)
•Pulling Speed at 4000 lbs. (17.9 kN): 7.5 fpm (2.3 mpm)
•Pulling Speed at 6000 lbs. (26.7 kN): 6 fpm (1.8 mpm)
•Power: 1-1/2 HP (1.1 kW): 120 VAC
•Super Tugger Cable Puller Power Unit - Includes force gauge and vise chains
•Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
•Unique floor mounting attachment for quick, reliable setup.
•Leaf type mounting chains won’t twist when tightening.
•Heat-treated steel serrated gripper feet for secure mounting to conduit.
•Force Gauge included to constantly monitor the pull.
•Right-angle sheave allows the operator to stand out of the direct line of force.
•Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
•Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
