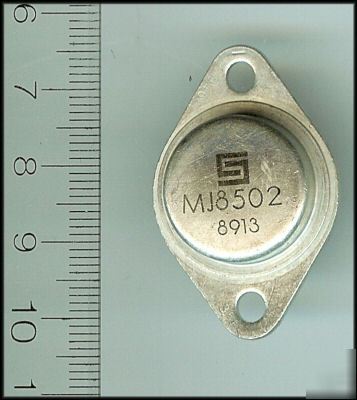

8502 / MJ8502 npn power transistor
Now over 1,400 items in our Store!
Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
Description = Si NPN Power BJT
I(C) Abs.(A) Collector Current = 5.0
Absolute Max. Power Diss. (W) = 150
@V(CBO) (V) (Test Condition) = 1.2k
@I(C) (A) (Test Condition) = 2.5
@I(B) (A) (Test Condition) = 1.0
h(FE) Min. Static Current Gain = 7.5
@I(C) (A) (Test Condition) = 1.0
@V(CE) (V) (Test Condition) = 5.0
t(d) Max. (s) Delay time. = 200n
t(r) Max. (s) Rise time = 2.0u
t(s) Max. (s) Storage time. = 4.0u
t(f) Max. (s) Fall time. = 2.0u
@V(CB) (V) (Test Condition) = 10
@Freq. (Hz) (Test Condition) = 1.0k
