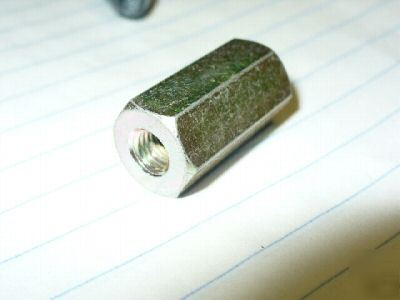

Standoff,threaded,spacing
CROSS-SECTIONAL SHAPE - HEXAGON
WIDTH ACROSS FLATS - 0.496 INCHES MINIMUM AND 0.504 INCHES MAXIMUM
STYLE DESIGNATOR - 8 LEFT INTERNAL AND RIGHT INTERNAL THREADS
LENGTH - 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA - 80205-NAS1786 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) FIRST INTERNAL THREAD LENGTH - 0.500 INCHES MINIMUM
(NON-CORE DATA) SECOND INTERNAL THREAD LENGTH - 0.500 INCHES MINIMUM
(NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS - 1/4-28 UNF RH
(NON-CORE DATA) SECOND INTERNAL THREAD CHARACTERISTICS - 1/4-28 UNF RH
(NON-CORE DATA) MATERIAL - BRASS, QQ-B-626, COMP 11
(NON-CORE DATA) SURFACE TREATMENT - CADMIUM, QQ-P-416, TYPE 2, CLASS 2
