Promate 4.0†tft-lcd module (480X234) + driver board

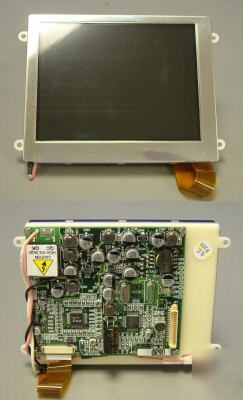

Promate 4" TFT LCD Display Module
(chassis mounting fittings attached)
Auto NTSC/PAL Flip, Colour LCD TFT monitor
12V DC input, and 75R composite Video input, great for Small Colour Screen applications, easy to use..
Display resolution (dot) 480*234
Active area (mm) 82.1(W)*61.8(H)
Screen size (inch) 4.05(Diagonal)
Dot pitch (mm) 0.171(W)*0.264(H)
Color Configuration R.G..B. Delta
Overall dimension (Panel only)
Brightness (Luminance) 350 nit
Front surface Anti-glare hard coating
White chromaticity x 0.25 0.30 0.35, y 0.30 0.35 0.40
Response time RFiaslel - 3205mmss 6500mmss
Operating Temperature 0°C~60°C
Storage Temperature -25°C ~ 80°C
Note 1. Measured at the center area of the panel when all the input terminals of LCD panel are
Note 2. Definition of “Viewing Angleâ€
