> IDT7132LA100J 2K x 8 dual port static ram electronic

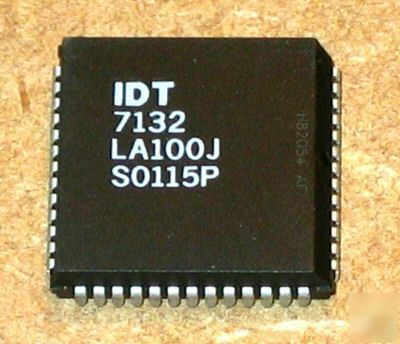

IDT7132LA100J 2K x 8 dual port static ram electronic
Integrated Device Technology, Inc.
The IDT7132/IDT7142 are high-speed 2K x 8 Dual-Port Static RAMs.
The IDT7132 is designed to be used as a standalone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the IDT7142 "SLAVE" Dual-Port in 16-bit-ormore word width systems.
Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
Both devices provide two independent ports with separate control, address, and l/O pins that permit independent, asynchronous access for reads or writes to any location in memory.
An automatic power down feature, controlled by
CE permits the on-chip circuitry of each port to enter a very low standby power mode.
Fabricated using IDT’s CMOS high-performance technology, these devices typically operate on only 550mW of power.
Low-power (LA) versions offer battery backup data retention capability, with each Dual-Port typically consuming 200
The IDT7132/7142 devices are packaged in a 48-pin sidebraze or plastic DIPs, 48-pin LCCs, 52-pin PLCCs, and 48-lead flatpacks.
Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
— Military: 25/35/55/100ns (max.)
— Commercial: 25/35/55/100ns (max.)
— Commercial: 20ns only in PLCC for 7132
• Fully asynchronous operation from either port
• MASTER IDT7132 easily expands data bus width to 16-ormore
• On-chip port arbitration logic (IDT7132 only)
BUSY output flag on IDT7132; BUSY input on IDT7142
• Battery backup operation —2V data retention
• Available in popular hermetic and plastic packages
• Military product compliant to MIL-STD, Class B
• Standard Military Drawing # 5962-87002
• Industrial temperature range (–40
tested to miliary electrical specifications
DATASHEET AVAILABLE ON REQUEST - PLEASE ASK !!!
