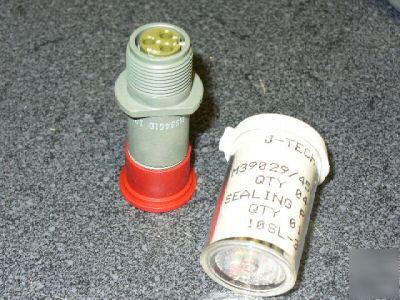

Connector,plug,electrical
BODY STYLE - 1A STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH - 2.125 INCHES MAXIMUM
OVERALL DIAMETER - 0.823 INCHES MINIMUM AND 0.885 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF AND UNEF
NOMINAL THREAD SIZE - 0.625 INCHES AND 0.625 INCHES
THREAD QUANTITY PER INCH - 24 AND 24
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
NOMINAL THREAD LENGTH - 0.290 INCHES AND 0.375 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ADAE 10SL-3 SINGLE MATING END
INSERT MATERIAL - RUBBER SILICONE CLASS Q SINGLE MATING END
INCLUDED CONTACT QUANTITY - 3 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3401 GOVERNMENT STANDARD
III PRECIOUS MATERIAL AND WEIGHT - 0.003 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC5015
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3401D10SL3S
