New -deluxe ver mini digital sound level checking meter

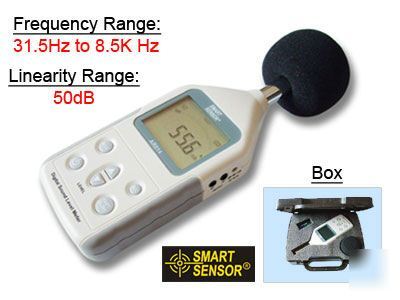

New-Deluxe Ver Mini Digital Sound Level Checking Meter (AR814 )
â–¼Click image below to enlargeâ–¼
Major parameters Specification:
Accuracy: =/ -1.5dB(under reference conditions)
Frequency range: 31.5Hz to 8.5K Hz
Measuring level: 30- 130dBA,35-130dBC
Digital display: 5 digits ( Resolution: 0.1dB / Display: 0.5 secretary)
Bar graph: 50dB scale at 1dB step for monitoring current sound pressure
Level ranges: 30-80dB;50-100dB;60-110dB;80-130dB;
Over indicate over range: Under indicate less than lower limit of the range
AC output: 0.707Vrms at FS output impendence approx 600Ω
DC output: 10mV/dB output impedance approx 100Ω
Microphone: 1/2 inch Electrets Condenser microphone
Power supply: 1*9V alkaline cells or DC 9V adapter
Power life: About 30hrs(calkaline cells)
Self calibration time: 10 sec (every turn on)
Operating Temperature: 0C to 40C
Operating Humidity: 10% to 80%RH
Storage Temperature: -10C to 60C
Storage Humidity: 10% to 70%RH
Dimensions 265(L)*72(W)*35(H)mm
Weight: 300g(including batteries)
1).Do not operate the unit at high temperature and Humidity environment.
2).Please take out battery from unit if not in use for any extended period of time.
3).Onece using the unit in the presence of wind.it is a must to mount the windscreen to not
4).Operating Environmental condition:
Humidity≤80% RH Temperature from 0C to 40C.
1 x New-Deluxe Ver Mini Digital Sound Level Checking Meter
