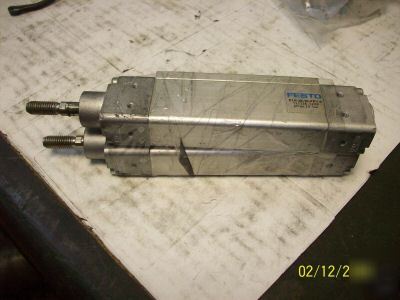

Festo dzh-20-50-ppv-a flat cylinder lot of 2
Max. angular deflection of piston rod +/- 2.6 deg
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Mode of operation double-acting
Position detection For proximity sensor
Protection against torque/guide Oval piston
Operating medium Dried compressed air, lubricated or unlubricated
Corrosion resistance classification CRC 2
Ambient temperature -20 - 80 °C
Max. torque for protection against rotation 0.6 Nm
Theoretical force at 6 bar, return stroke 158 N
Theoretical force at 6 bar, advance stroke 188 N
Additional weight per 10 mm stroke 15 g
Basic weight for 0 mm stroke 230 g
Mounting type with internal (female) thread
