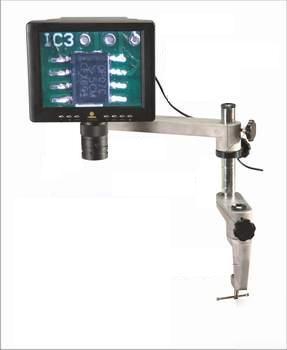

* Ideal effect pictures for user's comfortable watching.
* Relieve the fatigue of and damage to the eye results from long time watching via the microscope
* Clear pictures of high resolution, wide visible range and zoom range.
* All-in-one integration design, smart size, space saving.
* Simple and easy to operate, stepless zooming and with high max. zoom range.
* With "+" mark, for measurement and orientation references.
* LED light is easy to fix and operate, stepless lighting intensity.
* USB2.0 access enables the connection to computer display, picture-grapping, photographing, measuring, saving and printing as well.
1. Main body of microscope system:
* Focus of the optical microscope: 0.7X-4.5X (ratio: 1:6:5)
* Focus of the CCD ocular: 0.5X
* Focus of the microscope system: 0.35X-2.25X
* Valid working distance: 100mm
* Visible range (diameter) 17~13mm
* Displayed chip brand: Panasonic
* Horizontal visual resolution: 420TVL.
* Sensitization area: 3.6 x 2.7mm
* Video output: 1.0V p-p 75 ohm.
* Lattice proportion: 0.2535x0.2535 mm
* Video input: 1.0Vp-p 75ohm
Manufacture Warranty - One Year Warranty
For more information (manual) please visit our website (http:// /m4.html)Please contact me for further question: (***)418-6951
