Prototype boards OP1210B 3 pack * * * sale * * *

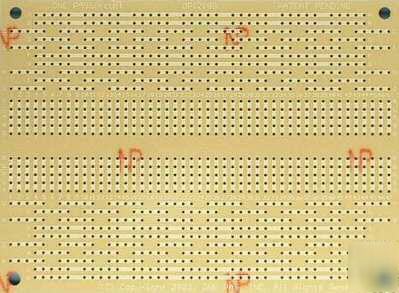

Three OP1210B ONE PASSircuitTM prototyping boards from ONE PAS, INC. allowing complete circuit prototyping in ONE PASS.
These boards contain a system of staggered traces (US Patent 6,650,548) that allow signals to flow through placements of other parts thus removing the need for jumpers in many cases. It further creates a Patented four pin socket array that can be used for mounting 3 pin devices that can be turned 360 degrees to avoid crossing signals. Some of these sockets have one connection on the power bus allowing direct power connection for switching devices, removing even more jumpers.
Imagine, one small board that can hold 0.6" & 0.3" DIPs and TO92 & TO218 & TO220 and all of your passive devices at the same time! The OP1210B from ONE PAS, INC. is 3.6" x 4.9" with 1210 Tie Points, can hold six 14-pin DIP ICs AND 28 transistors. It is made of UL Approved, single sided CEM-1 material with 1 oz. copper plate, pre-tinned to prevent corrosion and aid soldering. It has four corner mounting holes for chassis mount and fits in a # 270-1806 4" x 6" case from Radio Shack(R).
More information about ONE PAS, INC. may be found by typing our name into any major search engine.
