Leviton L14-30 locking flanged inlet plug 30A 125/250V

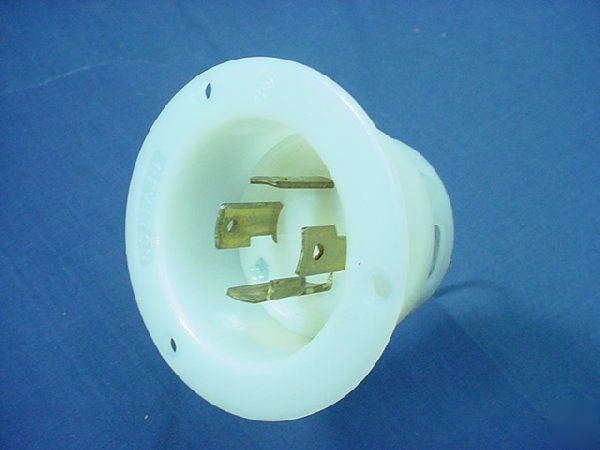

Leviton L14-30 Locking Flanged Inlet Plug 30A 125/250V
Leviton L14-30 Locking Flanged Inlet Plug 30A 125/250V
Industrial Specification Grade
Leviton 2715 locking flanged inlet. Industrial Specification Grade, NEMA L14-30P, 3-pole, 4-wire, grounding, rated 30A 125/250V. Terminals accomodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Bulk packed loose with no individual packaging. Features include:
* Solid brass blades are fitted and held tightly and securely in place
* Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
* Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
* Transparent wiring chambers provide a means of visual inspection of conductors and terminals
* Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
* Color-coded terminal screws
* Molded-in strip gage provides correct measurement for proper strip length of conductor
* Terminal identification letters on back cover ensure quick and accurate termination
* Captive terminal screws eliminate nuisance dropping and searching for missing screws
* Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
* Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
* Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
* NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
Click here to see matching L14-30 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #L2715-EA-NOBOX; 7.00 Ounces)
Need Wallplates for Locking Receptacles? Click the links below:
* 15A Wallplates (1.406" Diameter)
* 20A & 30A Wallplates (1.60" Diameter)
Additional locking devices and information:
* Matching L14-30 Plugs, Connectors & Receptacles
* See All Locking Plugs, Receptacles and Connectors
* Leviton NEMA Chart w/ Corresponding Part Numbers
Leviton L14-30 Locking Flanged Inlet Plug 30A 125/250V
