Extech- photoelectric sensor, $118.00 value, bn,

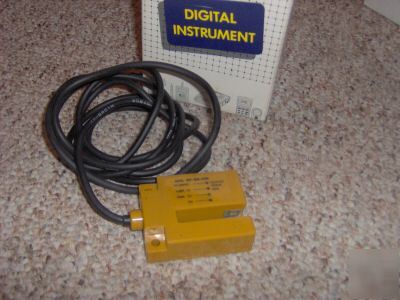

* L@@K *BRAND NEW* EXTECH PHOTOELECTRIC SENSOR FOR TACHOMETERS
* THIS PHOTOELECTRIC SENSOR GENERATES LIGHT BEAMS ACROSS A 0.4" WIDE GAP. WHEN A ROTATING OBJECT ENTERS THIS GAP, THE BEAM IS BROKEN.
* ROTATION IS UP TO 6,000 RPM, AND MAXIMUM MEASURING DISTANCE IS 0.4"
* POWER....................................DC 12V to 24V
* POWER CONSUMPTION........LESS THAN 40 mA
* DETECT DISTANCE................1 cm
* DETECT OBECT......................MIN 2x3mm
* RESPONSE TIME.....................LESS THAN 1ms
* OUTPUT...................................NPN, Max. LOAD 80 mA
* LIGHT SOURCE COLOR.........GREEN LIGHT
* LED WAVE LENGTH...............5500A
* BROWN WIRE.........................SENSOR POWER "+"
* BLUE WIRE..............................SENSOR POWER "-"
* BLACK WIRE............................SIGNAL OUTPUT WHEN HI to LO
* GREEN WIRE...........................SIGNAL OUTPUT WHEN LO to HI
* COMES IN ORIGINAL BOX WITH INSTRUCTION MANUAL
* SELLS NEW AT McMASTER FOR $118.45
