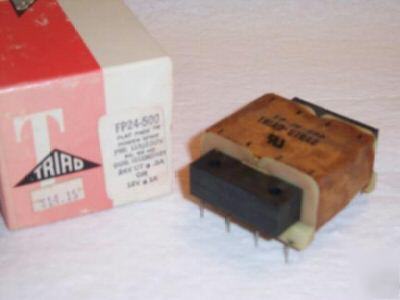

New triad FP24-500 flat pack power transformer ( in box)
PC MOUNT: FLAT PACK POWER TRANSFORMER
DUAL PRIMARY AND DUAL SECONDARY
TRIAD-UTRAD Brand Transformers Are A Division Of Magnetek, Inc.
This Triad Model FP24-500 Transformer Is A Brand New (never used) Unit Left Over In Our Retail Store Inventory From The Mid 1980's. It Still Has The Original Retail Price Sticker That Shows It Was Selling For $14.15 More Than 20 Years Ago.
The Triad FLAT PACK Series Are Wound On Two Dual Channel Nylon Bobbins Which Has A Long History Of Reliable Service In The Field, Made From A Proven Design And Constructed With UL Approved Materials, And Are Manufactured To Meet The Needs Of Low Clearance PC Board And Solid State Power Designs.
PRIMARY: Series = 230VAC 50/60HZ / Parallel = 115VAC @ 50/60Hz
SECONDARY: Series = 24V CT @ .500A / Parallel = 12V @ 1A
CONNECTIONS: PC Mount Pins .020" x .041"
NUMBER OF PINS: 8 ( 4 Primary Input, 4 Secondary Output )
DIMENSIONS: 1.062" High x 2" Wide x 2.5" Deep
PIN SPACING: .5" (side to side) / 2" (primary to secondary)
A Complete Data Sheet With Full Specifications Can Be Obtained Here
