New fluke T5-600 electrical tester

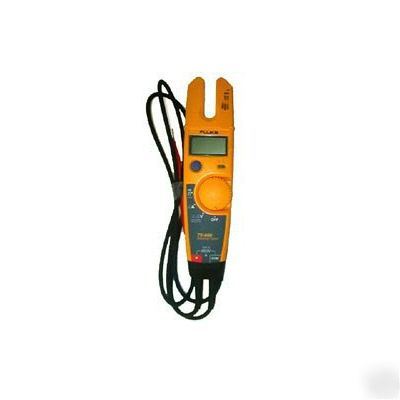

NEW Fluke T5-600 Electrical Tester
Fluke T5-600 Voltage Continuity and Current Tester stays connected to live lines much longer than solenoid-type testers, and is rugged enough to withstand a 10-foot drop. Designed to conform to IEC 1010-1 Category III standards. OpenJawâ„¢ feature lets you check current up to 100 amps without breaking the circuit. Displays resistance to 1000 ohms. Detachable Slim-Reachâ„¢ test probes, designed to fit in wall sockets and tight spots, stow neatly in the back of the tester. Auto-off mode conserves battery life. Comes complete with (2) AA batteries, test leads with detachable probe tips, and instruction sheet.
* Automatically measures volts ac and volts dc with precise digital resolution
* Displays resistance to 1000 Ohms
* Easy and accurate OpenJawâ„¢ current measurement
* Compact design with neat probe storage
* Rugged enough to withstand a 10-foot (3m) drop
* Detachable SlimReachâ„¢ probe tips are customized for national electrical standards
* Test leads accept Fluke accessory test clips
* Can stay connected much longer than solenoid type tester
* Auto off mode to conserve battery life
Threshold: On at <25 Ohms, off at >400 Ohms
Threshold: Guaranteed on by 30V ac
Humidity (Without Condensation):
0 to 95% 41 to 86°F (5 to 30°C)
0 to 75% 86 to 104°F (30 to 40°C)
0 to 45% 104 to 122°F (40 to 0°C)
0.1 x (specified accuracy)/degree F
Between any terminal and earth ground
Mechanical & General Specifications
1.2" x 2.0" x 8.0" (30.5 x 51 x 203 mm)
200 hour zinc chloride, 400 hour alkaline
Type: Heavy duty, flexible leads rated for 1000V use.
Field replaceable leads terminate in male shrouded
Probes: One red, one black, of two tip.
Detachable Slim-ReachT probe tips in one
