Deal for 2 layers pcb fabrication, laser stencil, smt

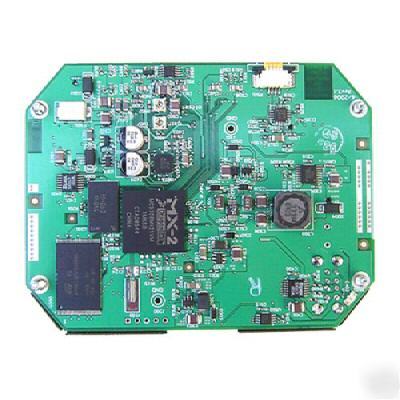

(One sample 6-layer board with double-side SMT assembly is shown in the picture)
1. Total area of all boards combined should be less than 200 inch sq. maximum size per board 15X15inch.
2. 1-2 Layers ,FR4 material,0.062â€,1oz Copper.
3. Multi-different designs on a signal panel is not allowed
4. Free step and repeat service is provided,
5. No limit on the number of vias or tooling size
7. Minimum hole size 15mil, minimum clearance or trace width 7mil.
8. Single/double side Green solder mask, Single/double side white silkscreen
9. Only Protel / PADS /PowerPCB are accepted
0. 4 layers or more PCB boards.
0.1 4 Layers 259.99199.00USD + 30USD
0.2 6 layers or more pls inquire us @ ****@gmail.com or ****@pcbgeek.com
1.1. 100% Laser cut stencils up to 24†X 31.5†foils
1.3. Material: Alloy 36 (Good chem.-etch and laser cutting properties, responds very well to electro polishing)
1.4. Foil thickness from .001†to .015â€
1.5. Trapezoidal apertures for better paste release
1.7. Only Protel / PADS / PowerPCB / Gerber files are accepted
2.1. Single-side/ Double-side SMT + Thru-hole
2.3. Quick turn & Prototyping our specialty
2.4.μBGA, CSP, BGA attach to 45 mm max size
2.5. Fine-pitch SMT, QFP down to 16 mil pitch.
2.6.Pick & Place 0402 components
2.7.Rework, Parts Recovery, Rebuild.
2.8. Only any files are accepted
PS: Because of large volume orders recently, the leading time is extending to 10 business days. We are working hard to finish every small orders. thanks for your support.
