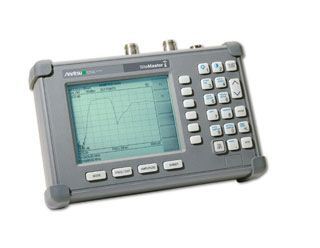

Anritsu S251C /5/10A site master
Measurement capability includes return loss, VSWR, cable loss and distance-to-Fault (DTF) analysis. In addition, the S251B features a second port for antenna isolation and gain measurement. A selectable +6 dBm or +30 dBm output and optional Bias Tee enables users to conveniently verify Tower Mounted Amplifier (TMA) gain before and after installation. The S251C's patented RF interference rejection feature and high dynamic range(>90 dB) enables the S251C to accurately measure antenna-to-antenna isolation in the presence of high RF activity. Data Analysis Software enables assessment of system trends, problems and performance in addition to professional report generation. An optional power monitor is available to make power measurements quickly and easily.
The S251C includes data analysis software, soft carrying case, rechargeable battery, AC/DC power supply, 12.5V automobile cigarette lighter adapter and users guide. The S251C replaces the former S251B models.
Frequency Range: 625 MHz to 2500 MHz
Handheld, battery-operated design
Lightweight at only 4 lbs (including battery)
Superior immunity to RF interference
Long Range, High Resolution Fault Location
Accurately Tests Tower Mounted Amplifiers
RF Source 625 MHz to 2500MHz, 10 kHz steps
Pop-up cable menus containing over 70 cable types
Saves up to 200 Measurement Traces
Alphanumeric Labeling of Saved Measurements
Automatic Time and Date Stamp of Saved Data
Distance Measurement in Feet and Meters
Information Screens Provide Cable Attenuation and Velocity of Propagation values
Trace Upload/Download, and overlay
For any questions on pricing or availability please email or call:
For technical questions please email through this listing.
