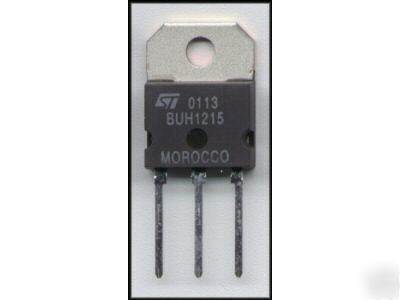

1215 / BUH1215 st micro high voltage fast-switching
Now over 1,500 items in our Store!
High Voltage Fast-Switching NPN Power Transistor
HORIZONTAL DEFLECTION FOR COLOUR TV AND MONITORS
The BUH1215 is manufactured using Multiepitaxial Mesa technology for cost-effective high performance and uses a Hollow Emitter structure to enhance switching speeds. The BUH series is designed for use in horizontal deflection circuits in televisions and monitors.
VCBO Collector-Base Voltage (IE = 0) 1500 V
VCEO Collector-Emitter Voltage (IB = 0) 700 V
VEBO Emitter-Base Voltage (IC =0) 10 V
ICM Collector Peak Current (tp <5ms) 22 A
IBM Base Peak Current (tp <5ms) 12 A
Ptot Total Dissipation at Tc =25 o C 200 W
Tstg Storage Temperature -65 to 150 o C
Tj Max. Operating Junction Temperature 150 o C
