MV5H164 bargraph display 10 multi-color leds - nos
10 LED bargraph displays - Very usefull with use of LM3914 or LM3915 or LM3916 IC's

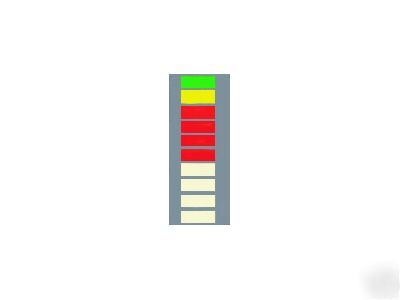

Picture may show reproduced colors for example since these are hard to scan with actual colors.
Purpose is to demonstrate lighting color sequence of LED's on display
Please refer to spec sheet at the following address for more details:
http://pdf1.alldatasheet.com/datasheet-pdf/view/53959/FAIRCHILD/MV5A164.html
Actual device is not found on Fairchild's web site, refer to above for general specifications.
Colors are represented in picture. NOTE: Uncolored areas are blank (no LEDS present)
They are NOT white color leds just empty or non lighting locations on display.
