Seidel 6SM37-m-6000 brushless servo motor
We have over 20 years experience in the supply and servicing of servo and automation equipment.

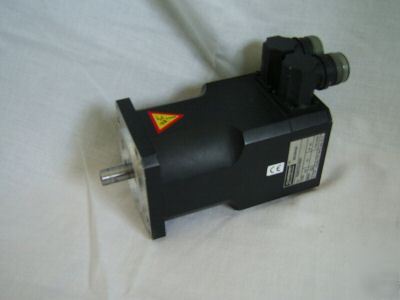

This 6SM37-M-6000 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 3000rpm.
The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak.
The motor flange measures 75mm square, with a 11mm shaft (keywayed), 60mm diameter locating spigot and four mounting holes on a 90mm PCD. Overall length is 190mm and weight is about 2kg.
Although not brand new, this item has been tested and is fully functional.
Please note that the price includes the VAT!
Keywords: Seidel sidel siedel siedle 6sm 37 6sm-37
