Prototype board sample pack 4 boards * * sale * *
"Congratulations on your new prototyping board line. I wish these had been available 10 years ago. And you may quote me on that." Forrest M. Mims III

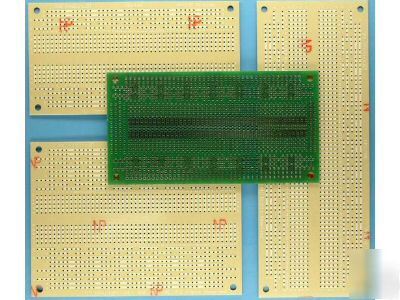

This is a lot of four ONE PASSircuitTM prototyping boards from ONE PAS, INC. allowing complete circuit prototyping in ONE PASS. This lot contains 4 sizes, including 1 each of the OP840B, OP1170B, OP1210B and OP1560B.
These boards contain a system of staggered traces (US Patent 6,650,548) that allow signals to flow through placements of other parts thus removing the need for jumpers in many cases. It further creates a Patented four pin socket array that can be used for mounting 3 pin devices that can be turned 360 degrees to avoid crossing signals. Some of these sockets have one connection on the power bus allowing direct power connection for switching devices, removing even more jumpers.
Imagine, one small board that can hold 0.6" & 0.3" DIPs and TO92 & TO218 & TO220 and all of your passive devices at the same time! There are also four corner mounting holes for chassis mount and the boards fit in a standard plastic project case available from Radio Shack.
The OP1560B is identical in size to the OP840B except that it is FR4, double sided, plated through and contains surface mount technology and header support. It holds all of the components listed above plus SOP thin frame and SOIC wide frame SMT ICs as well as SOT23-3, 4, 5 and 6 pin devices. Due to it's characteristics and extremely close tolerance it is only available in 'Standard' type.
More information about ONE PAS, INC. may be found by typing our name into any major search engine.
These four boards list seperately for $31.80.
