IOWA CITY MODERATED FORSALE NEWSGROUP   >   Machinery   >   Construction   >   New lot of 10 cables with hubbell plug 30A HBL2721 3P4W

New lot of 10 cables with hubbell plug 30A HBL2721 3P4W

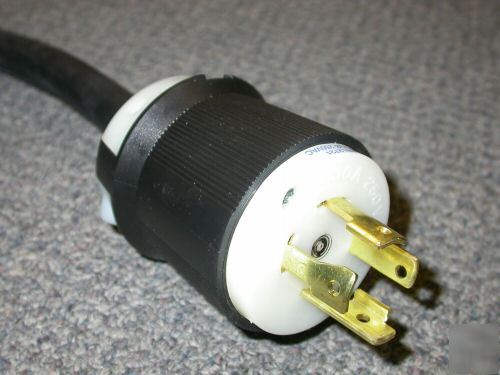

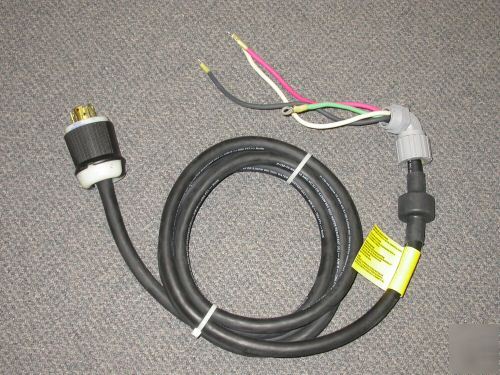

On one end, is a 4-prong twist-lock plug. On the other end are four wires with hoops at the end (part number 246697-002)
P-136-49-MSHA 10 AWG 4/C SJ OR SJOOW 90C 300V WATER RESISTANT(UL) - AIW-K - CSA FT1 - RoHS

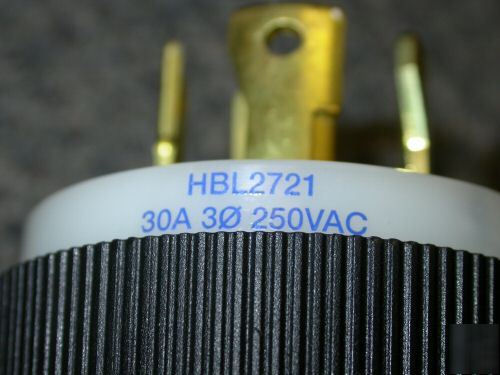

Hubbell Twist-Lock Plug P/N: HBL2721 30A
Twist-Lock Plug Specifications:
#10-32 Brass (white finish on neutral screw when used) Multi-drive
#10-32 Brass (green finish) Multi-drive
Steel, zinc plated Multi-drive
Steel, zinc plated Multi-drive
Permanently ink marked on body.
Certified for current interrupting at full rated current.
Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
HB or better per UL 94 or CSA 22.2 No. 0.6
Maximum Continuous 75 C Minimum -40 C (w/o impact)
Please check the delivery costs.
Most of our items come with a 30 day warranty. If the item is DOA (Dead on Arrival), we will replace or refund the item at our discretion.
