6V dc gearhead 141:1 electric motor battle bot robot

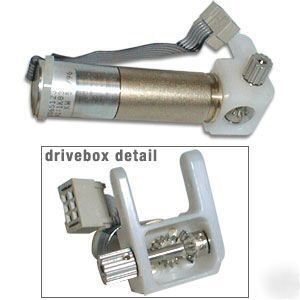

This is for (1) Precision right angle drive 141:1 gearhead motor will operate from 3VDC up to 18VDC. Made by Faulhaber, part# 1524E0065123 15/5S141-1K832, this Swiss made motor is only about 2.25"L (excluding right angle drive box) x 0.63"Dia. At 6VDC the motor draws 20mA and the RPM is 80. The right angle drive box has a 0.29"Dia. 12 tooth set screw metal gear on the output. Has 6 slot (dual 3 row) 0.10" spacing female socket that will mate with a 6 pin male header. Slot 1 and 6 are power to the motor - the other slots on the socket may be for an encoder (we don't know). The output drive box is about 1.2" x 0.66" x 0.82". Features high torque.
