(5) murata vco mqc-501 802 to 870 mhz usable to 1GHZ


WE HAVE THE DATASHEET AVAILABLE IN PDF

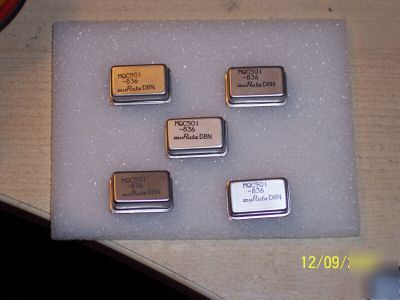

Five pieces or Murata VCO MCQ-501
DIP 14 equivalent package size, only 5 pins used
Pin 8 is Audio Modulation input about (24KHz per volt)
Pin 9 is control voltage, nominally 0 to 5V but it can work up to about 20V
802MHz at 0V, output power about -3dBm
870 MHz at 5V, output power about 0 dBm
1GHz at 18V, output power -6dBm
Harmonics are about 30dB down at 802MHz and about 20dB down at 870MHz
http://img214.imageshack.us/img214/7484/1041840aq3.jpg
http://img214.imageshack.us/img214/1475/1041844ol0.jpg
http://img214.imageshack.us/img214/3873/1041856aq2.jpg
FM modulation with 1KHz 2.5V peak sine wave (VC=2.5V)
http://img214.imageshack.us/img214/7099/1041846ot6.jpg
FM modulation at 1GHz (VC=18V) same modulating input
http://img214.imageshack.us/img214/9769/1041847sc7.jpg
http://img214.imageshack.us/img214/1595/1041851fw9.jpg
http://img214.imageshack.us/img214/7397/1041852nw6.jpg
http://img214.imageshack.us/img214/2735/1041853lf9.jpg
International is about 6.50 for first item 0.50 per extra item.
Regular airmail, there is no tracking number.
